Advanced safety solution with conical stud design that reduces unauthorised track access by up to 78% while enhancing rail network security.
Our unique anti-trespass panels feature a sophisticated conical stud design that provides enhanced deterrence while reducing installation time compared to traditional security solutions.
Manufactured from 100% recycled rubber, these panels provide an environmentally responsible solution for railway safety while delivering proven results in reducing unauthorised track access.
Three distinct panel variations approved by Network Rail ensure compliance and effectiveness across different railway infrastructure requirements.
Up to 78% reduction in trespassing incidents significantly improves network safety and passenger security.

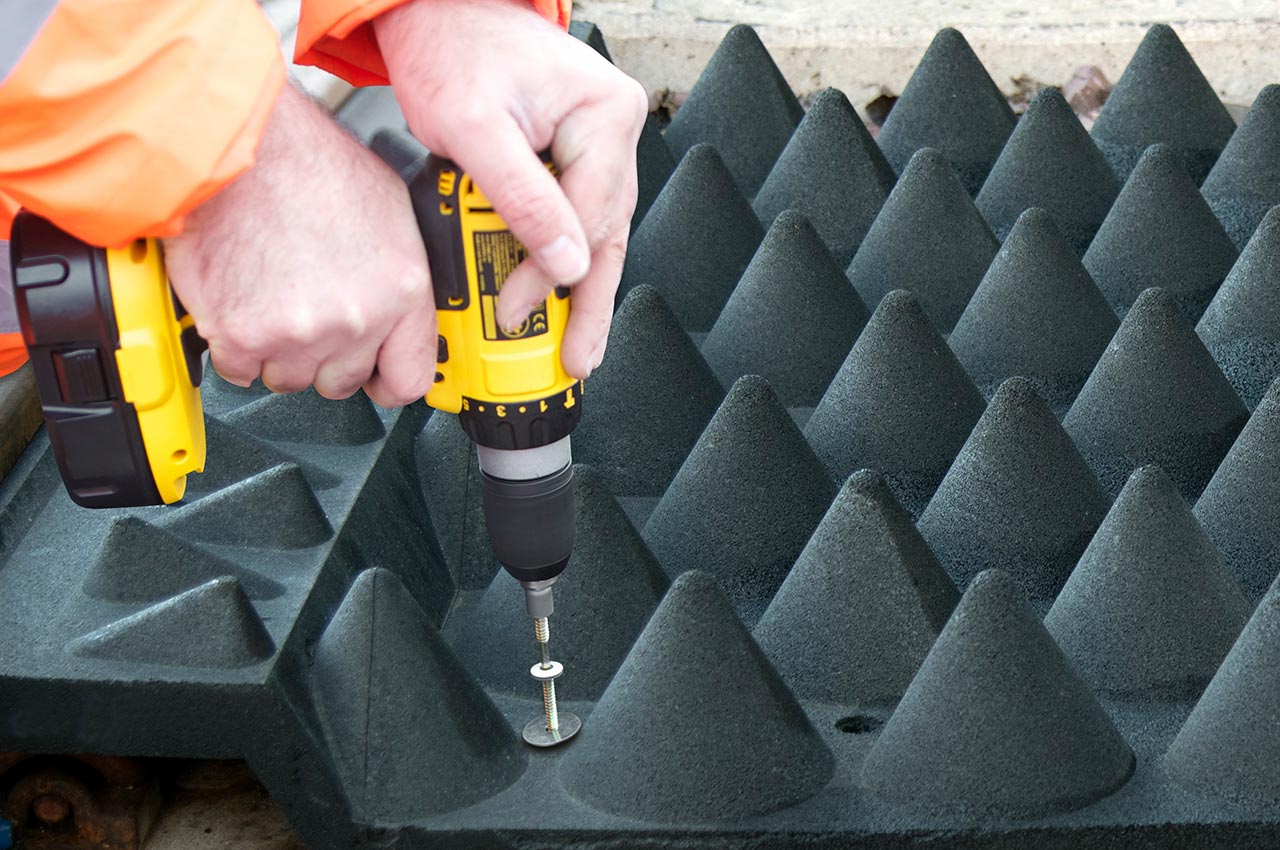

Reduced installation time and labour costs with complete fixing kit supplied and no specific tools required.
Three approved panel variations ensure compliance and effectiveness across different railway infrastructure needs.
Manufactured from 100% recycled rubber providing an environmentally responsible safety solution.
Self-draining configuration prevents water accumulation and reduces maintenance requirements over time.
Minimised track possession time and simplified maintenance requirements reduce total cost of ownership.
Anti-Trespass Panels are engineered to provide maximum deterrent effect while maintaining ease of installation and environmental sustainability. The modular construction allows for flexible deployment across various railway environments.
Each panel features conical stud design for enhanced deterrence and is manufactured from 100% recycled rubber with self-draining configuration to minimise maintenance requirements.
| Anti-Trespass Panel Specifications | |
|---|---|
| Design Type | Conical stud design |
| Construction | Modular construction system |
| Material Composition | 100% recycled rubber |
| Approval Status | Network Rail approved design |
| Fixing Kit | Complete fixing kit supplied |
| Drainage | Self-draining configuration |
| Panel Variations | Double flange, single flange, flangeless |
| Standard Dimensions | ~1485mm × 1300mm × 147mm |
| Weight Range | 98kg - 116kg (varies by type) |

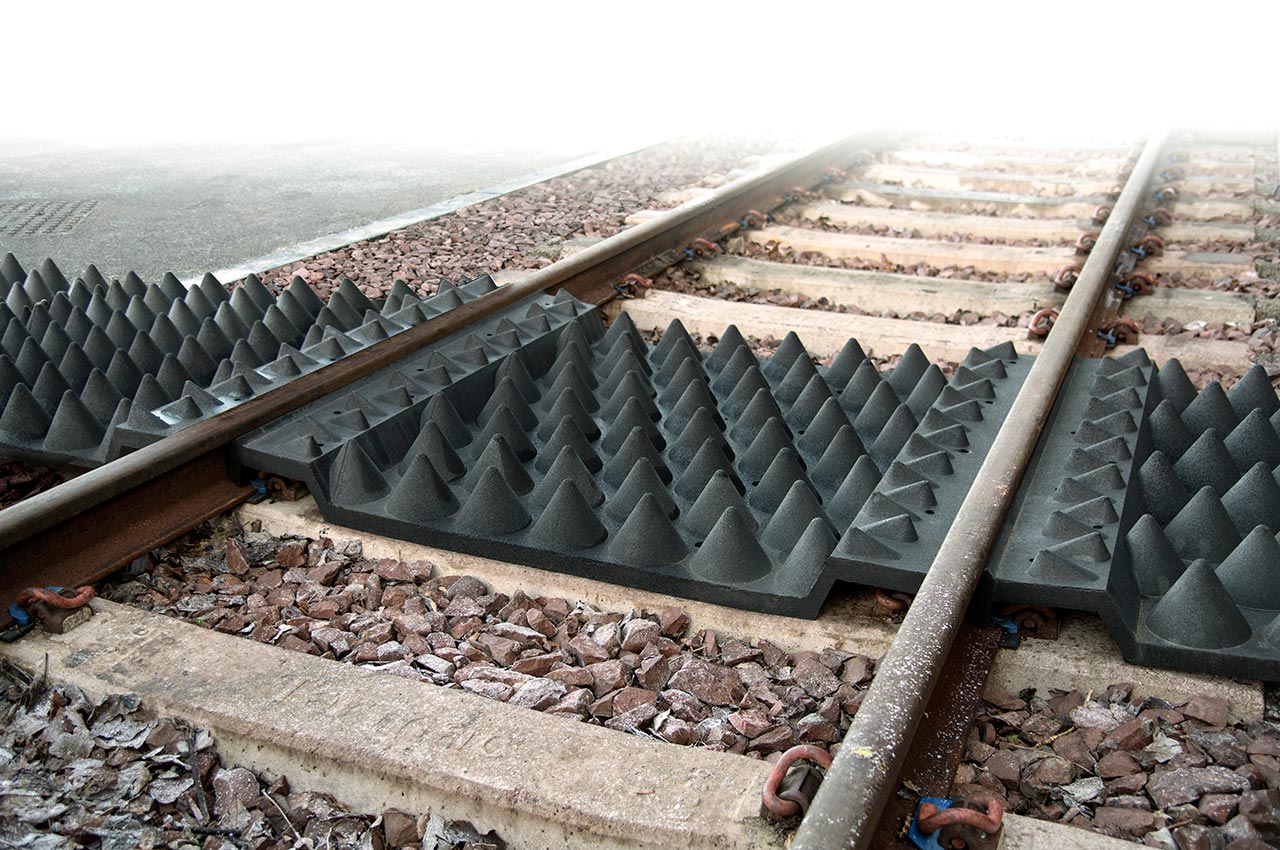

Double flange panels provide comprehensive security coverage for four-foot gauge track configurations.
Single flange design optimised for outside four-foot applications where space constraints apply.

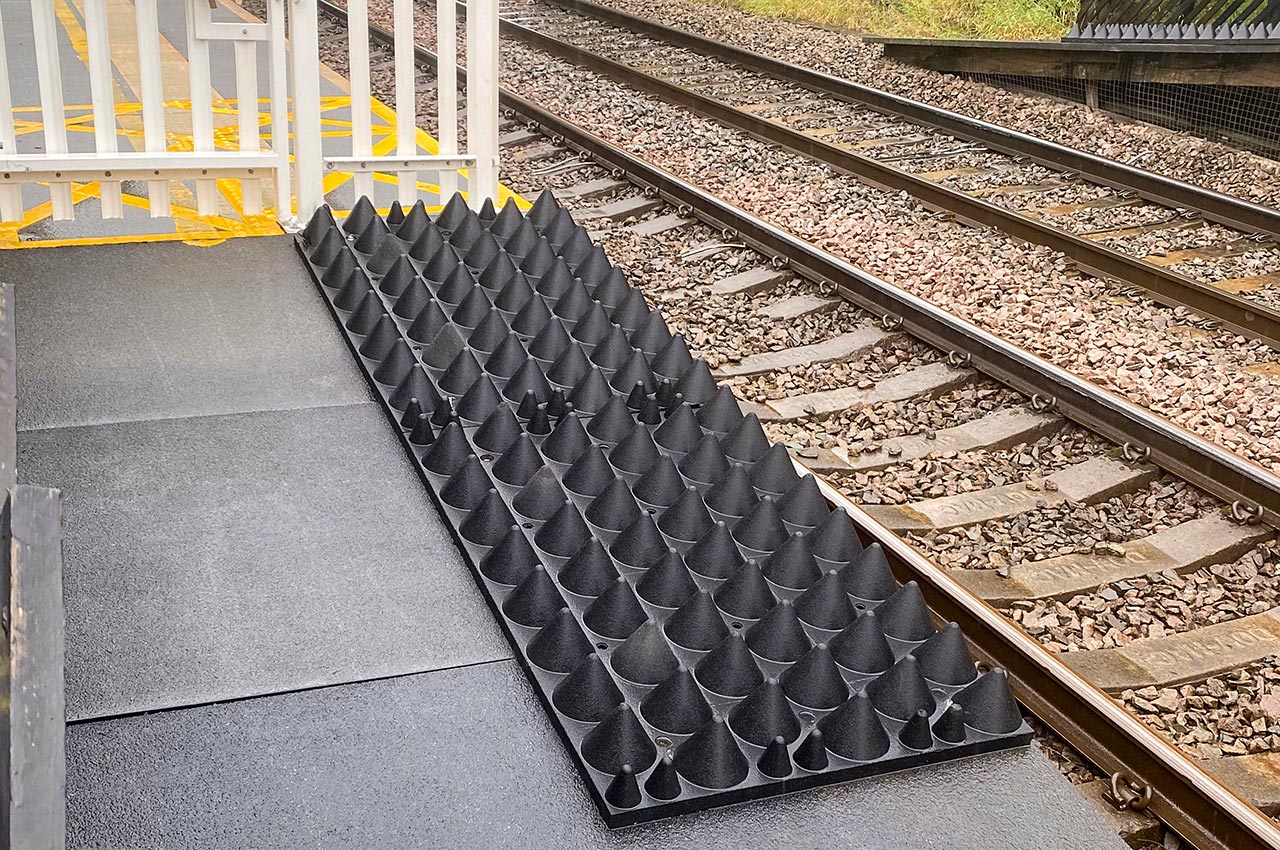

Full-width flangeless panels specifically designed for platform end security and passenger safety.
Proven effective across light rail, metro, and heavy rail networks for comprehensive trespass prevention.
Discover how Anti-Trespass Panels can reduce unauthorised access by up to 78% while providing environmentally sustainable rail safety solutions.
